CL-01 Chlorophyll Meter

Chlorophyll content meter

  • User-friendly, low-cost chlorophyll content meter
  • Field-portable, lightweight, robust design
  • Dual-wavelength optical absorbance (660nm & 940nm)
  • Simple 2-button operation
  • Auto-calibration & temperature compensation
  • 60-measurement memory capacity
  • No PC required

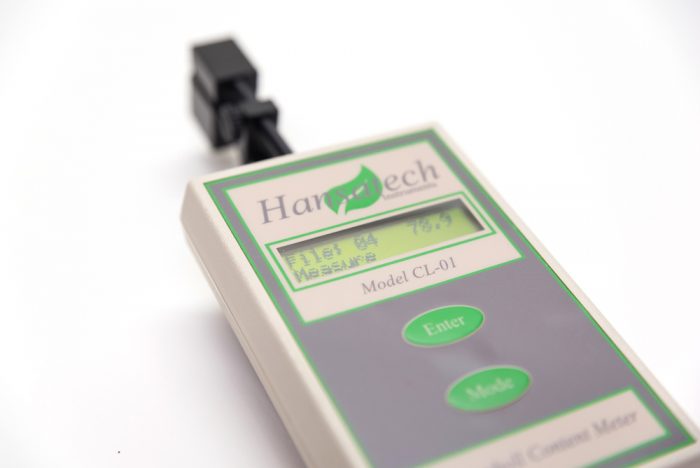

CL-01 Chlorophyll Meter Overview

The CL-01 Chlorophyll Content Meter provides a convenient, low-cost method of measuring the relative chlorophyll content of a leaf sample. The measurement of chlorophyll content provides an indicator of photosynthetic activity relating to the nitrogen concentration of the sample. This is particularly significant in plant growth programs where effects of the addition of nitrogen to a crop may be closely monitored.

The field-portable, hand-held device determines relative chlorophyll content using dual-wavelength optical absorbance (660nm and 940nm wavelength) measurements from leaf samples. Relative chlorophyll content is displayed in the range 0 – 2000 units.

The CL-01 features simple 2-button operation. Measurements take less than half a second and a maximum of 60 may be saved for individual review or displayed as an average. Leaf samples may be up to a maximum of 127mm wide. CL-01 is auto-calibrating and all measurements are temperature compensated to allow for changes of ambient temperature between measurements.

An internal rechargeable lithium polymer battery pack provides up to 75 hours of operation with a recharge time of approx. 4 hours using the 12 DC mains battery charger supplied.

Technical Specifications

  • Dimensions (LWH): 230mm x 91mm x 45mm
  • Weight: 250g
  • User Interface: 2-button keypad 2-line x 16 character LCD display
  • Electronics: 8-bit microcontroller
  • Battery: Environmentally friendly (0% lead, cadmium, mercury), lithium polymer 3.7V, 570mA/hrs
  • Battery Charger: Integral switch mode battery charger 8V – 13.5V input (nominal 12V output)
  • Battery Life: 75 hours continuous usage
  • Light Source: Dual wavelength LED (660nm and 940nm)
  • Detector: High-sensitivity silicone PIN photodiode
  • Memory: 60-measurement capacity

Publications

One of the extensions of the Google search facility is Google Scholar. It allows you to search through vast archives of peer-reviewed published papers and journals that have been posted online.

Use the tool below to enter search terms as required. As an example, hansatech instruments CL-01 Chlorophyll Meter has already been entered into the search box. Press the "Search" button to view the Google Scholar results for this search string.

Admittedly, some of the results link to journals which require subscription in order to view the publications but even so, we have found this facility to be a valuable tool.

Google Scholar

Download the CL-01 Chlorophyll Meter Brochure

Icon
1512 downloads 1.85Mb

Download the application note: CL-01 – Using a chlorophyll content meter in agriculture & agronomy

Icon
83 downloads 7.29Mb
